Setup Dual Arduino untuk Lagu Tema Giorno (Il Vento Doro) – Pitch dan Waktu Tepat

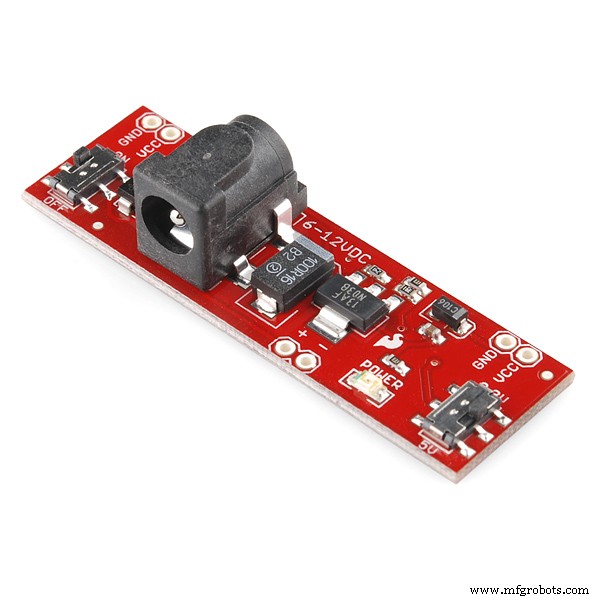

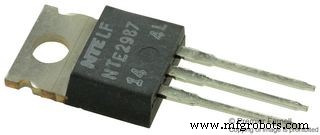

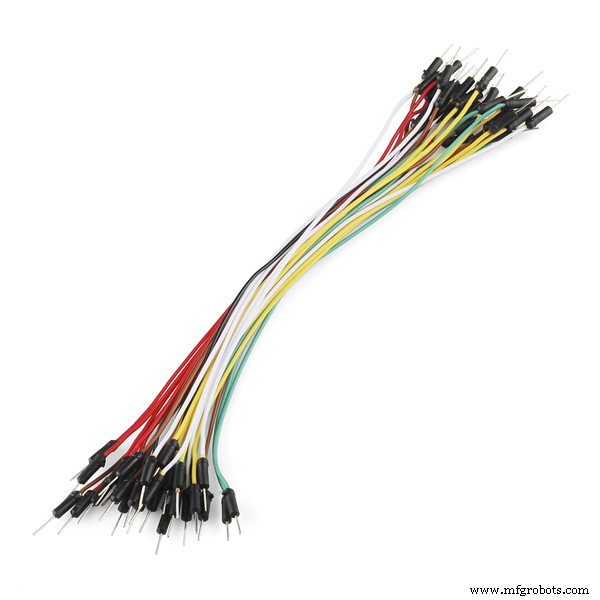

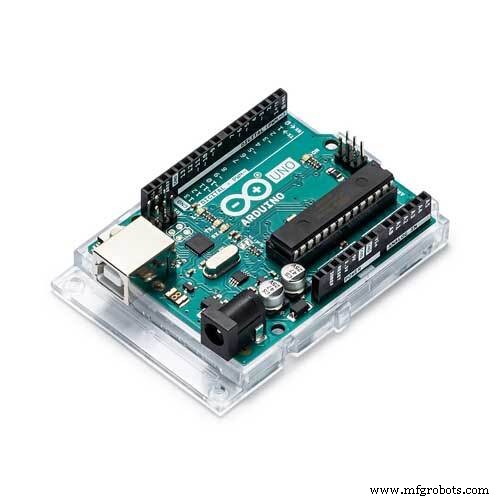

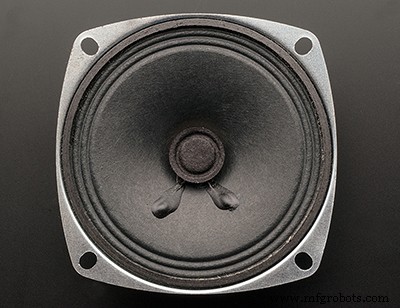

Alat dan Mesin yang Diperlukan

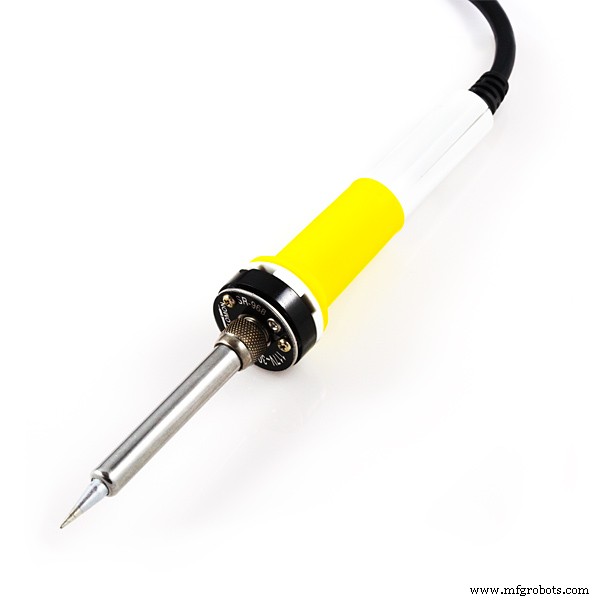

Soldering iron (generic)

Aplikasi dan Layanan Online

Arduino IDE

Tentang Proyek Ini

Ringkasan

Proyek ini menunjukkan cara mereproduksi Lagu Tema Giorno (Il Vento Doro) menggunakan dua papan Arduino untuk lapisan pitch yang presisi. Dengan memanfaatkan fungsi built-in tone() dan handshake digital sederhana, sistem menyinkronkan kedua unit untuk memainkan catatan yang tumpang tindih secara real time.

Papan utama memancarkan pulsa pemicu pada pin 2, yang diterima papan sekunder melalui pin 3. Setiap papan menjalankan array waveform khusus, memastikan catatan oktaf yang lebih tinggi diputar pada Arduino kedua untuk menghindari clipping frekuensi.

Kode

• Giorno’s Theme Part 1 (Arduino Utama)
• Giorno’s Theme Part 2 (Arduino Sekunder)

Giorno’s Theme Part 1 Arduino

#include "Color.h" int S[] = { Pink1, 0, Pink1, 0, Pink1, Blue1, 0, Pink1, 0, Orange2, 0, Pink1, 0, Green1, Blue1, 0, Pink1, 0, Pink1, 0, Pink1, Blue1, 0, Pink1, 0, LGreen2, 0, Yellow2, 0, Orange2, Blue1, 0, Pink1, 0, Pink1, 0, Pink1, Blue1, 0, Pink1, 0, Orange2, 0, Pink1, 0, Green1, Blue1, 0, Pink1, 0, Pink1, 0, Pink1, Blue1, Pink1, Orange2, 0, LGreen2, 0, Yellow2, 0, Orange2, Blue1, 0, Pink1, 0, Pink1, 0, Pink1, Blue1, 0, Pink1, 0, Orange2, 0, Pink1, 0, Green1, Blue1, 0, Pink1, 0, Pink1, 0, Pink1, Blue1, 0, Pink1, 0, LGreen2, 0, Yellow2, 0, Orange2, Blue1, 0, Pink1, 0, Pink1, 0, Pink1, Blue1, 0, Pink1, 0, Orange2, 0, Pink1, 0, Green1, Blue1, 0, Pink1, 0, Pink1, 0, Pink1, 0, Blue1, Pink1, 0, 0, 0, 0, Pink1, 0, Orange2, 0, Yellow2, LGreen2, 0, Green2, 0, Blue2, 0, Green2, 0, Blue2, Purple2, 0, Pink2, 0, Purple2, 0, Blue2, Green2, 0, Yellow2, 0, Orange2, LBlue1, 0, Blue1, 0, Purple1, 0, Pink1, 0, Orange2, 0, Yellow2, LGreen2, 0, Green2, 0, Blue2, 0, Green2, 0, Blue2, Purple2, 0, Pink2, 0, Blue2, Pink2, Blue2, 0, Purple2, Pink2, 0, LBlue1, 0, LBlue1, Blue1, Blue1, Purple1, 0, Pink1, 0, Orange2, 0, Yellow2, LGreen2, 0, Green2, 0, Blue2, 0, Green2, 0, Blue2, Purple2, 0, Pink2, 0, Purple2, 0, Blue2, Green2, 0, Yellow2, 0, Orange2, LBlue1, 0, Blue1, 0, Purple1, 0, Pink1, 0, Orange2, 0, Yellow2, LGreen2, 0, Green2, 0, Blue2, 0, Green2, 0, Blue2, Purple2, 0, Pink2, 0, Blue2, Pink2, Blue2, 0, Purple2, Pink2, 0, LBlue1, 0, LBlue1, Blue1, Blue1, Purple1, 0, Orange2, DOrange2, Pink1, 0, Blue1, 0, 0, Pink1, 0, 0, Pink1, 0, 0, 0, Green1, 0, Blue1, 0, Pink1, 0, DOrange2, 0, 0, Blue1, 0, 0, Pink1, 0, 0, 0, 0, 0, Orange2, DOrange2, Pink1, 0, Blue1, 0, 0, Pink1, 0, 0, Pink1, 0, 0, Green1, 0, 0, DOrange2, 0, Orange2, 0, DOrange2, 0, 0, Blue1, 0, DOrange1, Yellow1, Green1, DOrange1, Green1, LBlue1, Pink1, Orange2, DOrange2, Pink1, 0, Blue1, 0, 0, Pink1, 0, 0, Pink1, 0, 0, 0, Green1, 0, Blue1, 0, Pink1, 0, DOrange2, 0, 0, Blue1, 0, 0, Pink1, 0, 0, 0, 0, 0, Orange2, DOrange2, Pink1, 0, Blue1, Orange2, 0, Green2, Yellow2, Orange2, Pink1, 0, Blue2, LBlue2, 0, Green2, Orange2, DOrange2, 0, Pink1, Blue1, Pink1, 0, Blue1, Pink1, 0, Blue1, Pink1, 0, Blue1, Pink1, 0, Blue1, Pink1, 0, Blue1, Pink1, Orange2, 0, Green2, 0, 0, 0, 0, 0, Orange2, 0, 0, 0, 0, 0, 0, Orange2, Yellow2, LGreen2, 0, 0, Yellow2, 0, 0, Orange2, 0, DOrange2, 0, 0, Orange2, 0, 0, Yellow2, 0, Green2, 0, 0, 0, 0, 0, Pink2, 0, 0, 0, 0, 0, Pink1, 0, DOrange2, 0, Orange2, 0, 0, Yellow2, 0, 0, Orange2, 0, DOrange2, 0, 0, Blue2, 0, 0, DGreen2, 0, Green2, 0, 0, 0, 0, 0, Orange2, 0, 0, 0, 0, 0, 0, Orange2, Yellow2, LGreen2, 0, 0, Yellow2, 0, 0, Orange2, 0, DOrange2, 0, 0, Orange2, 0, 0, Yellow2, 0, Green2, 0, 0, 0, 0, 0, Pink2, 0, 0, 0, 0, 0, Green2, 0, Purple2, 0, Pink2, 0, 0, DGreen2, 0, 0, Green2, 0, LGreen2, 0, 0, Pink2, 0, 0, Green2, 0, Green2 }; int L = sizeof(S); int nds = 10; void setup() { Serial.begin(115200); pinMode(2, OUTPUT); L = L / 2; Serial.println(L); Tone(); } void loop() {} void Tone() { digitalWrite(2, HIGH); for (int n = 0; n < L; n++) { int nd = 1000 / nds; tone(6, S[n], nd); int d = nd * 1.2; delay(d); noTone(6); } }

Giorno’s Theme Part 2 Arduino

#include "Color.h" int S[] = { 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, Pink2, 0, Pink2, 0, Pink2, Blue2, 0, Pink2, 0, Orange3, 0, Pink2, 0, Green2, Blue2, 0, Pink2, 0, Pink2, 0, Pink2, Blue2, 0, Pink2, 0, LGreen3, 0, Yellow3, 0, Orange3, Blue2, 0, Pink2, 0, Pink2, 0, Pink2, Blue2, 0, Pink2, 0, Orange3, 0, Pink2, 0, Green2, Blue2, 0, Pink2, 0, Pink2, 0, Pink2, 0, Blue2, Pink2, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, Orange3, DOrange3, Pink2, 0, Blue2, 0, 0, Pink2, 0, 0, Pink2, 0, 0, 0, Green2, 0, Blue2, 0, Pink2, 0, DOrange3, 0, 0, Blue2, 0, 0, Pink2, 0, 0, 0, 0, 0, Orange3, DOrange3, Pink2, 0, Blue2, 0, 0, Pink2, 0, 0, Pink2, 0, 0, Green2, 0, 0, DOrange3, 0, Orange3, 0, DOrange3, 0, 0, Blue2, 0, DOrange2, Yellow2, Green2, DOrange2, Green2, LBlue2, Pink2, Orange3, DOrange3, Pink2, 0, Blue2, 0, 0, Pink2, 0, 0, Pink2, 0, 0, 0, Green2, 0, Blue2, 0, Pink2, 0, DOrange3, 0, 0, Blue2, 0, 0, Pink2, 0, 0, 0, 0, 0, Orange3, DOrange3, Pink2, 0, Blue2, Orange3, 0, Green3, Yellow3, Orange3, Pink2, 0, Blue3, LBlue3, 0, Green3, Orange3, DOrange3, 0, Pink2, Blue2, Pink2, 0, Blue2, Pink2, 0, Blue2, Pink2, 0, Blue2, Pink2, 0, Blue2, Pink2, Orange3, 0, Green2, 0, 0, 0, 0, 0, Orange2, 0, 0, 0, 0, 0, 0, Orange2, Yellow2, LGreen2, 0, 0, Yellow2, 0, 0, Orange2, 0, DOrange2, 0, 0, Orange2, 0, 0, Yellow2, 0, Green2, 0, 0, 0, 0, 0, Pink2, 0, 0, 0, 0, 0, Pink1, 0, DOrange2, 0, Orange2, 0, 0, Yellow2, 0, 0, Orange2, 0, DOrange2, 0, 0, Blue2, 0, 0, DGreen2, 0, Green2, 0, 0, 0, 0, 0, Orange2, 0, 0, 0, 0, 0, 0, Orange2, Yellow2, LGreen2, 0, 0, Yellow2, 0, 0, Orange2, 0, DOrange2, 0, 0, Orange2, 0, 0, Yellow2, 0, Green2, 0, 0, 0, 0, 0, Pink2, 0, 0, 0, 0, 0, Pink2, 0, DOrange3, 0, Orange3, 0, 0, DGreen3, 0, 0, Green3, 0, LGreen3, 0, 0, Orange3, 0, 0, Purple2, 0, Pink2 }; int L = sizeof(S); int nds = 10; void setup() { Serial.begin(115200); pinMode(3, INPUT_PULLUP); L = L / 2; Serial.println(L); } void loop() { if(!digitalRead(3)) { Tone(); } } void Tone() { for (int n = 0; n < L; n++) { int nd = 1000 / nds; tone(6, S[n], nd); int d = nd * 1.2; delay(d); noTone(6); } }

Skematik
