Sistem Penghindar Halangan Berbasis AI dengan Arduino dan Sensor Ultrasonik
Komponen dan Perlengkapan
SparkFun Arduino Pro Mini 328 - 5V/16MHz × 1
Sensor Ultrasonik - HC-SR04 (Generic) × 1
Driver Motor Dual H-Bridge SparkFun L298 × 1
Motor DC (generic, 60 RPM) × 2
Roda × 4
Kabel jumper (generic) × 1
Papan Solder-able Breadboard - Mini SparkFun × 1
Baterai Rechargeable Lithium Ion 7.2V × 1
Baterai 9V (generic) × 1
Klips Baterai 9V × 1
PCB Custom PCBWay × 1
Saklar C&K Switches JS Series × 1
Alat dan Mesin yang Diperlukan
Paku solder (generic)
Kawat Solder, Tanpa Timbal
Flux Solder, Soldering
Pompa Desoldering, Deluxe SOLDAPULLT®
Pengupas & Pemotong Kabel, 18-10 AWG
Pistol Lem Panas (generic)
Tape, Double Sided
Aplikasi dan Layanan Online
Arduino IDE
Tentang Proyek
ROBOT PENGHINDAR HALANGAN MENGGUNAKAN AI/PEMBELAJARAN PENGUATAN
Rumusan Masalah: Tujuan utama adalah untuk belajar menghindari halangan dalam “N” Episode dan mempelajari tindakan optimal. Dalam kasus ini, asumsikan kita perlu Robot kita untuk mempelajari tindakan optimal sebagai 'Kanan'.
Algoritma Pembelajaran Penguatan yang Digunakan: Q learning

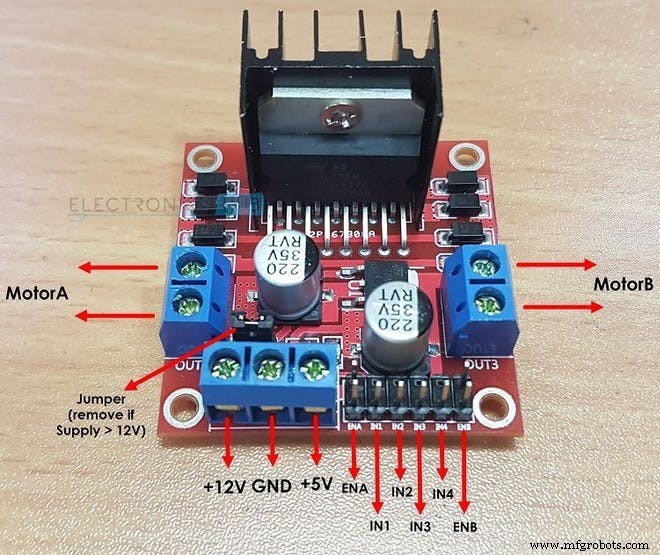

Bagaimana L298N Menggerakkan Dua Motor DC:

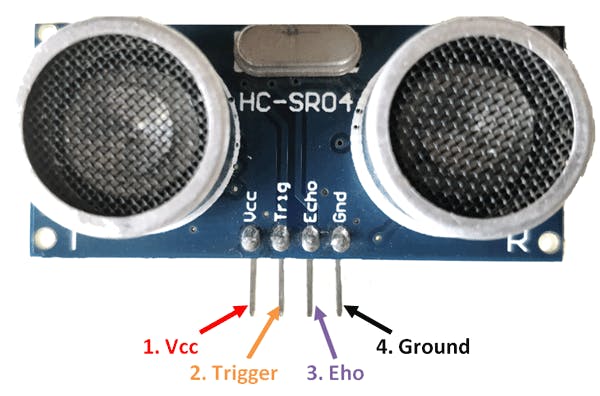

Bagaimana Sensor HC-SR04 Menghitung Jarak:
Istilah Penting dalam Pembelajaran Penguatan:
1. STATE: Ini adalah situasi di mana Robot berada. Untuk Robot Penghindar Halangan dasar, ada total 2 state ……state pertama adalah ketika tidak ada halangan di dekatnya dan state kedua ketika ada halangan di depannya.(ketika saya menulis kode saya asumsikan 10 state berbeda yang dapat diharapkan tindakan yang sama. Alasan saya melakukan ini untuk mengilustrasikan lingkungan yang lebih kompleks.)
2. ACTION: Dalam State tertentu robot melakukan tindakan tertentu. Ada 4 tindakan yang dapat dilakukan robot dalam state ke-2: “MAJU”, “MUNDUR”, “KIRI”, “BERHENTI”. Dalam state pertama, robot dapat melakukan 4 tindakan tetapi untuk memudahkan hal saya asumsikan robot hanya dapat melakukan satu tindakan yaitu “MAJU”( Ini karena sia-sia untuk mempertimbangkan tindakan seperti KIRI atau MUNDUR ketika tidak ada halangan di dekat.
int ACTIONS = [0,1,2,3]
/* HERE : 0 = MAJU 1 = MUNDUR 2 = BERHENTI 3 = KANAN*/
3. NEXT STATE: Ini adalah state tempat robot berada setelah melakukan “ACTION” tertentu dalam “STATE” saat ini. Dalam kasus Robot Penghindar Halangan, NEXT STATE bisa menjadi state “CRASHED” atau state “SURVIVED”. (Di sini state SURVIVE sama dengan state awal yang dimiliki robot saat episode dimulai.)
/*SETELAH MEL AKUKAN TINDAKAN ROBOT MASUK KE NEXT STATE DALAM KASUS ROBOT PENGHINDAR HALANGAN*/
int NEXT_STATE; int STATE = 0; NEXT_STATE = STATE+1;
4. Q TABLE / Q MATRIX: Tabel ini dibentuk oleh Jumlah “STATES” dan Jumlah “ACTIONS”. Dalam Kasus Robot Penghindar Halangan, Tabel ini diberikan oleh:
Di sini N_STATES = 10 DAN N_ACTIONS = 4. di sini “0.0” menunjukkan bahwa tindakan apa pun dapat dilakukan dari salah satu 4 tindakan yang mungkin. jika, namun, Anda ingin menghapus tindakan tertentutindakan dalam suatu state ganti “0.0” dengan “-1.0” dalam matriks. “-1.0” menunjukkan bahwa tindakan tidak dapat dilakukan dalam state tersebut. di sini diasumsikan kita memiliki 10 state berbeda dengan setiap state mengharapkan tindakan yang sama. jika Anda ingin robot Anda mempelajari tindakan yang berbeda dalam setiap state ubah hadiah dari matriks hadiah dalam kode
5. TERMINAL STATE: Ini adalah state terakhir tempat robot bisa berada. Untuk Robot Penghindar Halangan, state ini tidak ada karena kita tidak memiliki state terminal dan ingin tetap membiarkan Robot kita belajar selamanya.
6. REWARD MATRIX: Tabel atau matriks ini digunakan untuk memberikan hadiah kepada robot untuk tindakan tertentu. Hadiah bersifat positif atau negatif tergantung pada kualitas tindakan.
7. ENVIRONMENT: Ini juga dapat diasumsikan atau dianggap sebagai dunia untuk Robot. Misalnya, kita manusia tinggal di bumi jadi dasarnya bumi adalah environment kita.
Hyperparameters dalam Pembelajaran Penguatan:
1. LEARNING RATE (ALPHA): Learning rate atau ukuran langkah menentukan sejauh mana informasi yang baru diperoleh menggantikan informasi lama. Faktor 0 membuat agen tidak belajar apa-apa (hanya mengeksploitasi pengetahuan prior), sementara faktor 1 membuat agen mempertimbangkan hanya informasi terbaru (mengabaikan pengetahuan prior untuk menjelajahi kemungkinan). Dalam lingkungan sepenuhnya deterministik, learning rate ALPHA = 1.0 adalah optimal. Jika masalah stokastik, algoritma konvergen dengan beberapa kondisi teknis pada learning rate yang mewajibkannya menurun ke nol. Dalam praktiknya, sering digunakan learning rate konstan, seperti ALPHA = 0.1 untuk semua skenario.
float ALPHA = 0.2;
2. DISCOUNT FACTOR (GAMMA): Discount factor 0 menentukan pentingnya hadiah di masa depan. Faktor 0 akan membuat agen “miope” (pendek pandangan) dengan hanya mempertimbangkan hadiah saat ini, sementara faktor yang mendekati 1 akan membuatnya berusaha mencari hadiah jangka panjang yang tinggi. Jika discount factor mencapai atau melebihi 1, nilai tindakan mungkin akan divergen. Untuk GAMMA = 1.0, tanpa state terminal, atau jika agen tidak pernah mencapai satu, semua riwayat environment menjadi tak terbatas, dan utilitas dengan hadiah aditif yang tidak didiskon biasanya menjadi tak terbatas. Bahkan dengan discount factor hanya sedikit lebih rendah dari 1, Q function learning menyebabkan propagasi error dan ketidakstabilan saat value function didekstimasi dengan jaringan saraf buatan. Dalam hal itu, memulai dengan discount factor yang lebih rendah dan meningkatnya menuju nilai akhirnya mempercepat pembelajaran.
float GAMMA = 0.9;
3. EXPLORATION RATE (EPSILON): Parameter ini memutuskan sejauh mana robot harus menjelajahi environment. Menjelajahi environment berarti melakukan tindakan acak dan menganalisis hasilnya melalui Q Values. Biasanya, dalam Q Learning (tidak seperti SARSA) kita akhirnya mengurangi parameter ini seiring robot belajar lebih dan lebih. Tapi Dalam proyek ini, kita tidak akan mengurangi Epsilon karena kita tidak memiliki state terminal. Epsilon dalam hal ini akan berkurang hingga beberapa titik dan kemudian direset kembali saat turun di bawah nilai ambang. Ini akan memastikan robot terus menjelajahi selama hidupnya sama seperti kita manusia.
float EPSILON = 0.75;
ALGORITMA Q-LEARNING:
Inisialisasi tabel nilai Q, Q(s, a). Saya telah menginisialisasi nilai ini ke 0.0.
Amati state saat ini, s.
Pilih tindakan, a, untuk state tersebut berdasarkan salah satu kebijakan pemilihan tindakan yang dijelaskan di halaman sebelumnya (📷-soft, 📷-greedy atau softmax).
PROB = RANDOM(EPSILON); if (PROB<=EPSILON) //EXPLORE THE ACTIONS { ACTION = random(0,4); FLAG = 2; } else //EXPLOIT THE ACTIONS FROM Q TABLE { ACTION = ARGMAX(Q,STATE); FLAG = 2; }
Lakukan tindakan, dan amati hadiah, r, serta state baru, s'.

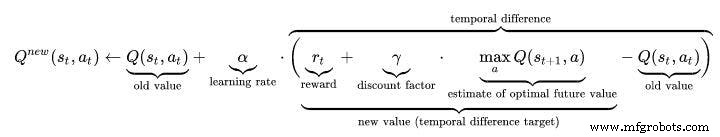

Perbarui nilai Q untuk state menggunakan hadiah yang diamati dan hadiah maksimum yang mungkin untuk state berikutnya. Pembaruan dilakukan sesuai dengan rumus dan parameter yang dijelaskan di atas.
Setel state ke state baru, dan ulangi proses hingga state terminal tercapai.
Untuk memahami Q-learning lebih baik kunjungi tautan ini:https://towardsdatascience.com/a-beginners-guide-to-q-learning-c3e2a30a653c
///////////////////Implementation of Q_Learning Formula/////////////////////////
Video Kerja: Jangan lupa untuk memeriksa video kerja AI Robot :)
Kode
Robot Penghindar Halangan menggunakan Q-LEARNING
Robot Penghindar Halangan menggunakan Q-LEARNINGC/C++
INI ADALAH KODE UTAMA ROBOT PENGHINDAR HALANGAN BERBASIS KECERDASAN BUATAN.
/* This is an Obstacle Avoiding Robot using Reinforcement Learning/AI Author of this Project : Varun Walimbe Algorithm used in this project: Q learning How Obstacle Avoiding Works? 1.Ultrasonic sensor is used measure distance from the obstacle using its Echo and Trig Pins. 2.When distance is measured and if its less than 20cm then there is an obstacle nearby otherwise robot is safe and continue Forward. 3.If obstacle is detected then robot takes left or right turn depending on the situation. How AI based Obstacle Avoidance Works?(Q learning) 1.Here the 1st step from upper article remains the same.However the 2nd Step is different. 2.A list of actions of the robot are initialised first. For Example in this case actions of Robot are: Left , Forward, Backward ,Stop. 3.When the Robot comes near an obstacle it is required to perform an action. However note that in this case Robot doesn't know which action to take as its not pre programmed and going to learn on its own to avoid obstacles. 4.When Robot stops when there is an obstacle in front of it then it gets reward as 0 When Robot stops and goes backward it receives reward of -5 When Robot continues to move forward ignoring the obstacles it receives reward of -10 When Robot just moves left as soon as obstacle is detected it gets reward of +10 5.In this way Robot learns on its own to avoid obstacles by Reward Mechanism.*/ //////////ROBOT'S HARDWARE PARAMETERS//////////////////// int TRIG_PIN = 7; int ECHO_PIN = 8; int duration; float distance; int M1 = 13; int M2 = 12; int M3 = 11; int M4 = 10; bool Obstacle = false; int FLAG; /////////////////////////END///////////////////////////// /////////////////////////////////////Q LEARNING PARAMETERS/////////////////////////////////////////// float ALPHA = 0.1; //LEARNING RATE float GAMMA = 0.5; //DISCOUNT FACTOR float EPSILON = 0.90; //EXPLORATION PARAMETER int REWARD; //REWARD FOR PERFORMING AN ACTION int EPISODES = 100; int STATE; // CURRENT STATE OF THE ROBOT int ACTION = 0; //ACTION PERFORMED BY THE ROBOT(0:FORWARD,1:BACKWARD ,2;STOP,3:LEFT) float PROB; //USED FOR EPSILON DECAY bool ACTION_TAKEN = false; //THIS VARIABLES TELLS US WHETHER AN ACTION IS TAKEN OR NOT int NEXT_STATE; // NEXT STATE OF THE ROBOT const int STATES = 10; //NUMBER OF STATES IN ENVIRONMENT int ACTIONS[4] = {1,2,3,4}; const int NUMBER_OF_ACTIONS = 4; //TOTAL WE HAVE 4 ACTION FORWARD,BACKWARD,LEFT AND STOP /*THIS IS THE Q MATRIX OR Q TABLE. THIS IS BASICALLY THE DIARY THAT ROBOT WILL LOOK INTO BEFORE PERFORMING AN ACTION.BASED ON THE ACTION THE ROBOT WILL EARN REWARD AND THE Q VALUE WILL BE UPDATED IN THIS Q TABLE. HERE I HAVE CONISDERED 10 STATES. I HAVE ASSUMED ALL STATES ARE DIFFERENT EVEN THOUGH THEY ARE SAME.BASICALLY OBSTACLE AVOIDING ROBOT CONTAINS ONLY TWO STATES i.e: 1:WHEN ITS AWAY FROM OBSTACLE 2:WHEN ITS NEAR TO THE OBSTACLE BUT HERE TO ILLUSTRATE MORE COMPLEX ENVIRONMENT I HAVE ASSUMED THERE ARE 10 DIFFERENT STATES HERE EXPECTING SAME/DIFFERENT ACTION.*/ float Q[STATES][NUMBER_OF_ACTIONS] = {{0.0,0.0,0.0,0.0}, //MOST IMPORTANT OF ALL IS THE Q TABLE. {0.0,0.0,0.0,0.0}, //IT IS FORMED BY STATES AS ITS ROWS {0.0,0.0,0.0,0.0}, //AND COLLUMNS AS ITS NUMBER OF ACTIONS {0.0,0.0,0.0,0.0}, //INITIALISED TO ZERO IN THE START {0.0,0.0,0.0,0.0}, // THIS WILL UPDATED IN THE FUTURE. {0.0,0.0,0.0,0.0}, {0.0,0.0,0.0,0.0}, {0.0,0.0,0.0,0.0}, {0.0,0.0,0.0,0.0}, {0.0,0.0,0.0,0.0}}; /*THIS IS A REWARD MATRIX OR REWARD TABLE. THIS IS RESPONSIBLE FOR GIVING REWARD TO ROBOT FOR PERFORMING PARTICULAR ACTION. IT STORES THE REWARD FOR EACH ACTION TAKEN AT STATE. THE REWARD WILL BE POSITIVE IF THE ACTION PERFORMED IS GOOD AND NEGATIVE IF ACTION YIELDS BAD RESULTS.*/ int REWARDS[STATES][NUMBER_OF_ACTIONS] = {{-10,-2,-1,10}, {-10,-2,-1,10}, {-10,-2,-1,10}, {-10,-2,-1,10}, {-10,-2,-1,10}, {-10,-2,-1,10}, {-10,-2,-1,10}, {-10,-2,-1,10}, {-10,-2,-1,10}, {-10,-2,-1,10}}; ////////////////////////////////////////////END/////////////////////////////////////////////////// ////////////////Q LEARNING UPDATE PARAMETERS//////////// float Q_OLD; float Q_NEW; float Q_MAX; //////////////////////////END////////////////////////// void setup() { Serial.begin(9600); pinMode(TRIG_PIN,OUTPUT); pinMode(ECHO_PIN,INPUT); pinMode(M1,OUTPUT); pinMode(M2,OUTPUT); pinMode(M3,OUTPUT); pinMode(M4,OUTPUT); randomSeed(analogRead(A0)); STATE = 0; Serial.println("TRAINING WILL START IN 5 SECONDS: "); delay(5000); } ////////////////////////////ROBOT'S FUNCTIONS///////////////////////////////// void Forward() { digitalWrite(M1,LOW); digitalWrite(M2,HIGH); digitalWrite(M3,LOW); digitalWrite(M4,HIGH); } void Backward() { digitalWrite(M1,HIGH); digitalWrite(M2,LOW); digitalWrite(M3,HIGH); digitalWrite(M4,LOW); } void Left() { digitalWrite(M1,HIGH); digitalWrite(M2,LOW); digitalWrite(M3,LOW); digitalWrite(M4,HIGH); } void Right() { digitalWrite(M1,LOW); digitalWrite(M2,HIGH); digitalWrite(M3,HIGH); digitalWrite(M4,LOW); } void Stop() { digitalWrite(M1,LOW); digitalWrite(M2,LOW); digitalWrite(M3,LOW); digitalWrite(M4,LOW); } bool Obstacle_Avoider() { digitalWrite(TRIG_PIN, HIGH); delayMicroseconds(10); digitalWrite(TRIG_PIN, LOW); duration = pulseIn(ECHO_PIN ,HIGH); distance = (duration/2)/29.1; if(distance<15) { Obstacle = true; } if(distance>15) { Obstacle = false; } delay(10); return Obstacle; } ////////////////////////////////////////////END//////////////////////////////////////////////// ///////////////////////////////ROBOT'S Q LEARNING FUNCTIONS//////////////////////////////////// float RANDOM(float EXPLORATION_PARAMETER) { /*THIS FUNCTION FINDS RANDOM NUMBER WHICH DECIDES WHETHER AN ACTION TO BE TAKEN IS RANDOM OR FROM Q_TABLE*/ float RANDOM_VARIABLE; float PROBABILITY; RANDOM_VARIABLE = random(0,100); PROBABILITY = RANDOM_VARIABLE/100; return PROBABILITY; } float DECAY(float PARAMETER) { /*THIS FUNCTION IS USED TO REDUCE EPSILON(EXPLORATION PARAMETER) WITH TIME.FINALLY AT THE END YOU GET RID EPSILON AND THE ROBOT LEARNS TO AVOID OBSTACLES ON ITS OWN */ PARAMETER = PARAMETER*0.98; //PARAMETER HERE IS THE EPSILON return PARAMETER; } int GET_STATE() { int STATE_NUMBER; STATE_NUMBER = random(0,10); return STATE_NUMBER; } float MAX(float Q_Table[][4],int NEXT_S) { /*THIS FUNCTION FINDS THE BIGGEST NUMBER IN Q_TABLE[NEXT_STATE]. THE MAIN ROLE OF THIS FUNCTION IS TO FIND Q_MAX PARAMETER*/ float LIST[4]; float N1; float N2; float MAX_VALUE= 0.0; float DIFF; for(int b = 0; b<=3; b++) { LIST[b] = Q[NEXT_S][b]; } for(int j = 0; j<=2 ; j++) { if(MAX_VALUE >LIST[j]) { N1 = MAX_VALUE; } else { N1 = LIST[j]; } N2 = LIST[j+1]; DIFF = N1- N2; if(DIFF > 0) { MAX_VALUE = N1; } else { MAX_VALUE = N2; } } return MAX_VALUE; } int ARGMAX(float Q_Table[][4],int S) { /*THIS FUNCTION FINDS THE INDEX OF BIGGEST Q VALUE IN Q TABLE[STATE]*/ float ARRAY[4]; float N1; float N2; float MAX_VALUE = 0.0; float DIFF; float NUMBER; int MAX_INDEX; for(int u= 0; u<=3; u++) { ARRAY[u] = Q_Table[S][u]; } for(int p = 0; p<=2 ; p++) { if(MAX_VALUE >ARRAY[p]) { N1 = MAX_VALUE; } else { N1 = ARRAY[p]; } N2 = ARRAY[p+1]; DIFF = N1- N2; if(DIFF > 0) { MAX_VALUE = N1; } else { MAX_VALUE = N2; } } for(int r = 0; r<=3;r++) { NUMBER = ARRAY[r]; if(NUMBER == MAX_VALUE) { MAX_INDEX = r; break; } } return MAX_INDEX; } void Update(float Q_TABLE[][4] , int S, int NEXT_S, int A, int ACTIONS[], int R, float LEARNING_RATE, float DISCOUNT_FACTOR) { /*THIS FUNCTION UPDATES THE Q TABLE AND Q VALUES. THIS UPDATE KEEPS ON HAPPENING UNTILL THE MAIN LOOP ENDS. AT THE END OF EPISODES THE Q TABLE IS FILLED WITH VARIOUS VALUES. THE GREATER THE VALUES THE GREATER IMPORTANCE THE ACTION HAS AT THAT PARTICULAR STATE. "Q_OLD" IS OLD VALUE THAT THE Q MATRIX HAS.THIS IS THE VALUE WHICH GETS UPDATED EVENTUALLY. Q_NEW IS THE NEW Q_VALUE WHICH IS CALCULATED BY THE Q LEARNING FORMULA. THE Q LEARNING FORMULA USED HERE IS BASED ON BELLMAN EQUATION USES TEMPORAL DIFFERENCE LEARNING APPROACH.(MONTE CARLO APPROACH WILL NOT WORK IN THIS CASE OF OBSTACLE AVOIDING ROBOT.*/ Q_OLD = Q_TABLE[S][A]; Q_MAX = MAX(Q_TABLE, NEXT_S); Q_NEW = (1-LEARNING_RATE)*Q_OLD + LEARNING_RATE*(R + DISCOUNT_FACTOR*Q_MAX); Serial.print("Q VALUE : "); Serial.println(Q_NEW); Q_TABLE[S][A] = Q_NEW; } ///////////////////////////////////////////////////////////END/////////////////////////////////////////////////////////////// /////////////////////////////////////////START OF MAIN LOOP///////////////////////////////////////////////// void loop() { /////////////////////////////////////////TRAINING//////////////////////////////////////////// for(int I =0; I<EPISODES; I++) { Serial.println("START :"); ACTION_TAKEN = false; FLAG = 0; while(true) { Forward(); Obstacle = Obstacle_Avoider(); if(Obstacle == true) { NEXT_STATE = STATE+1; if(NEXT_STATE == 10) { NEXT_STATE = 0; } if(NEXT_STATE < 0) { NEXT_STATE = 0; } Serial.print("STATE: "); Serial.println(STATE); FLAG = 1; break; } } if(FLAG ==1) { PROB = RANDOM(EPSILON); if (PROB<=EPSILON) //EXPLORE THE ACTIONS { ACTION = random(0,4); FLAG = 2; } else //EXPLOIT THE ACTIONS FROM Q TABLE { ACTION = ARGMAX(Q,STATE); FLAG = 2; } } if(FLAG ==2) { if(ACTION == 0) { Forward(); delay(1500); Stop(); REWARD = REWARDS[STATE][ACTION]; } if(ACTION == 1) { Backward(); delay(2500); Stop(); REWARD = REWARDS[STATE][ACTION]; } if(ACTION == 2) { Stop(); REWARD = REWARDS[STATE][ACTION]; } if(ACTION == 3) { Left(); delay(2000); Stop(); REWARD = REWARDS[STATE][ACTION]; } ACTION_TAKEN = true; delay(500); } if(ACTION_TAKEN == true) { Update(Q,STATE,NEXT_STATE,ACTION ,ACTIONS,REWARD,ALPHA ,GAMMA); STATE = NEXT_STATE; EPSILON = DECAY(EPSILON); if(EPSILON<0.5) { EPSILON == 0.9; } Serial.print("EPISODE ENDED : "); Serial.println(I); delay(7000); } } /////////////////////////////////////END OF TRAINING/////////////////////////////////// //////////////////////////////////////EVALUATION////////////////////////////////////////// /*USE THIS TO CHECK WHETHER YOUR Q VALUES ARE RIGHT OR WRONG. IF ALL Q VALUES ARE COMING RIGHT OR SEEMS RIGHT/ACCURATE COMMENT THIS SECTION */ for(int y = 0; y<=9 ; y++) { Serial.println("SET OF Q VALUES WILL START:"); for(int l = 0; l<=3; l++) { Serial.print("Q VALUE :"); Serial.println(Q[y][l]); delay(2000); } delay(2000); } Serial.println("EVALUATION ENDED"); ////////////////////////////////END OF EVALUATION///////////////////////////////////////// ////////////////////////////////////////TESTING//////////////////////////////////////////// while(true) { Forward(); Obstacle = Obstacle_Avoider(); if(Obstacle == true) { STATE = GET_STATE(); ACTION = ARGMAX(Q,STATE); Serial.print("ACTION TAKEN: "); Serial.println(ACTION); if(ACTION ==0) { Forward(); delay(1500); Stop(); } if(ACTION == 1) { Backward(); delay(1500); Stop(); } if(ACTION == 2) { Stop(); } if(ACTION == 3) { Left(); delay(2000); Stop(); } } } //////////////////////////////////////////////////END OF TESTING//////////////////////////////////////////////////////////// } //////////////////////////////////////////////////////END OF MAIN LOOP////////////////////////////////////////////////////////
